用途 Application

本產品適用于額定電壓為0.6/1KV、1.8/3KV、3.6/6KV、6/10KV、8.7/15KV、12/20KV、21/35KV、26/35KV的輸配電系統中；使用本產品，將使高層建筑、地鐵、電站等一些重要場合具有防火安全和消防救生的能力。

The product is to used as power distribution system of electricity at rated voltage 0.6/1KV、1.8/3KV、3.6/6KV、6/10KV、8.7/15KV、12/20KV、21/35KV、26/35KV.

產品特性 Product features

(1)電纜線芯長期允許工作溫度為70℃。

The cable wire core allows long time working temperature of 70℃.

(2)短路時(最長持續時間不超過5s)電纜導體的最高溫度不超過160℃。

When core is in short-circuir(max 5s) the temperature should not exceed 160℃.

(3)敷設電纜時的環境不低于0℃，最小彎曲半徑應不小于電纜外徑的20倍。

While installation the ambient temperature should not be lower than 0℃,and the bending radius should not be less than 20-time.

型號名稱及使用范圍 Type names and usable range

序號	型號Type	名稱 Name	使用范圍 Usage range
1	ZA(ZR)-X	阻燃型電力電纜 Flame-retardart electrical cable	敷設在對阻燃有要求的場所、隧道及管道中 For laying in the room,in tunnels and in deets which need flame retardancy
2	NH-X	耐火型電力電纜 Fire-resistant electrical cable	敷設在對阻燃有要求的場所、隧道及管道中 For laying in the room,in tunnels and in deets which need fire resistance
3	ZANH-X	阻燃耐火型電力電纜 Flame-retardart Fire-resistant electrical cable	敷設在對阻燃、耐火有要求的場所、隧道及管道中 For laying in the room,in tunnels and in deets which need flame retardancy and fire resistance
4	WDZA-X	低煙無鹵阻燃型電力電纜 Halogen-free and low-smoke Flame-retardart electrical cable	敷設在對無鹵低煙、阻燃有要求的場所、隧道及管道中 For instllation in the room,tunnels and conduits which need low smoke and halogen free and flame resistance
5	WDNH-X	低煙無鹵耐火型電力電纜 Halogen-free and low-smoke Fire-resistant electrical cable	敷設在對無鹵低煙、耐火有要求的場所、隧道及管道中 For instllation in the room,tunnels and conduits which need low smoke and halogen free and fire resistance
6	WDZANH-X	低煙無鹵阻燃耐火型電力電纜 Halogen-free and low-smoke Flame-retardart Fire-resistant electrical cable	敷設在對無鹵低煙、阻燃及耐火有要求的場所、隧道及管道中 For instllation in the room,tunnels and conduits which need low smoke and halogen free and flame retardancy fire resistance
7	備注	X-表示為：VV、VLV、VV(TL)、YJV、YJLV、YJV(TL)、VV22、VLV22、VV22(TL)、YJV22、YJLV22、YJV22(TL)

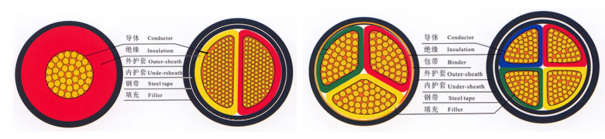

產品結構 Cable structure

生產范圍 Manufacture range

型號 Type			芯數 Number of cores	額定電壓 Rated Voltage (V)
				0.6/1	3.6/6 & 6/6	6/10 & 8.7/10	8.7/15 & 12/20	18/20 & 26/35
				標稱截面 Nominal cross area (mm2)
YJV	YJLV	YJV(TL)	1	1.5-400	25-400	25-400	35-400	50-400
YJV YJV22	YJLV YJLV22	YJV(TL) YJV22(TL)	3 3+1 3+2 4+1	4-300	25-300	25-300	35-300	50-300
YJV22	YJLV22	YJV22(TL)	2 3 4 5	2.5-300
